MSI

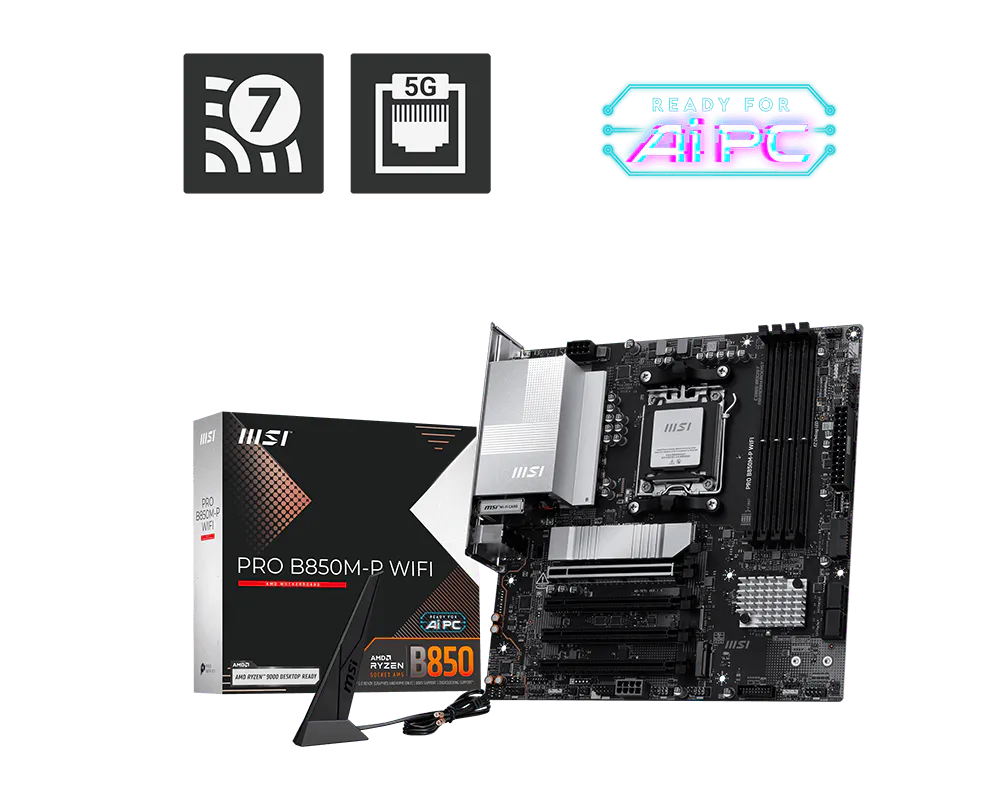

MSI Pro B850M-P WiFi

BND 229.00

In stock!

Estimated delivery: Aug 07 - Aug 11

Product Information

• AMD AM5 Ready: Supports AMD Ryzen™ 9000, 8000, and 7000 Series desktop processors for cutting-edge system performance.

• High-Speed DDR5 Memory: Features 4x DDR5 slots supporting dual-channel memory up to 8200+ MT/s (OC) for smooth multitasking and gaming.

• Next-Gen Connectivity: Equipped with Wi-Fi 7 with EZ Antenna, Realtek 5G LAN, and USB 10Gbps Type-C for ultrafast data transmission.

• PCIe 5.0 Expansion: Features a PCIe 5.0 x16 slot and a Lightning Gen 5 x4 M.2 slot for maximum bandwidth with top-tier GPUs and SSDs.

• Tool-Free EZ DIY: Simplifies installation with EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II, and a pre-installed Wi-Fi module.

• Frozr Guard Cooling: Built with extended heatsinks, 7W/mK MOSFET thermal pads, choke pads, and a 6-layer 2oz copper PCB for continuous heavy workloads.

Product Summary

Engineered for peak performance, the MSI PRO B850M-P WIFI motherboard supports AMD Ryzen™ 9000 series CPUs, DDR5 memory up to 8200+ MT/s, and PCIe 5.0 technology. Experience ultra-fast networking with Wi-Fi 7 and 5G LAN, coupled with EZ DIY features for effortless PC building.

View details

Product Specifications

Warranty Information

Reviews

Specification Category	Details
Model	MSI PRO B850M-P WIFI
Form Factor	mATX (243.84 mm x 243.84 mm)
Socket	AMD Socket AM5
Chipset	AMD B850
CPU Support	AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
Memory Capacity	4x DDR5 UDIMM slots, up to 256GB max capacity
Memory Frequency Support	DDR5 8200+ to 5600 (OC) MT/s / 5600 to 4800 (JEDEC) MT/s
Memory Features	Dual-Channel mode, AMD EXPO™, Non-ECC Un-buffered, CUDIMM (Bypass mode)
Expansion Slots	1x PCIe 5.0 x16 slot (PCI_E1 from CPU) 3x PCIe 3.0 x1 slots (PCI_E2/E3/E4 from Chipset)
Graphics Output	1x HDMI™ 2.1 (Up to 4K 60Hz) 1x DisplayPort 1.4 (Up to 4K 60Hz) (Requires CPU with Integrated Graphics)
M.2 Storage Slots	1x M.2_1 (CPU, up to PCIe 5.0 x4, 2280/2260) 1x M.2_2 (CPU, up to PCIe 4.0 x4, 2280/2260) 1x M.2_3 (Chipset, up to PCIe 4.0 x2, 2280)
SATA Storage	4x SATA 6Gb/s ports
RAID Support	SATA: RAID 0, 1, 10 M.2 NVMe: RAID 0, 1, 5 (RAID 5 requires Ryzen™ 9000 Series)
Wireless & Bluetooth	Wi-Fi 7 (802.11be, 2.4/5/6GHz up to 2.9Gbps), MU-MIMO, MLO, 4KQAM Bluetooth® 5.4
Ethernet LAN	Realtek® 8126VB 5G LAN
Audio	Realtek® ALC897 7.1-Channel High Definition Audio
USB Ports (Rear)	1x USB 10Gbps Type-C 1x USB 10Gbps Type-A 2x USB 5Gbps Type-A 4x USB 2.0
USB Ports (Front)	1x USB 10Gbps Type-C 4x USB 5Gbps Type-A 4x USB 2.0
Power Connectors	1x 24-pin ATX_PWR 1x 8-pin CPU_PWR 1x 8-pin PCIE_PWR
Fan Headers	1x CPU Fan, 1x Combo Fan (Pump_Sys Fan), 3x System Fan
RGB Headers	3x Addressable V2 RGB LED connectors (JARGB_V2), 1x RGB LED connector (JRGB)
DIY & Utility Features	EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II, EZ Antenna, 4x EZ Debug LED, 1x EZ Memory Detection LED
Back Panel Features	Clear CMOS Button, Flash BIOS Button, HDMI, DisplayPort, 5G LAN, Wi-Fi/Bluetooth, Audio Connectors, USB Ports
PCB Construction	6-layer PCB with 2oz thickened copper and server-grade materials
OS Support	Windows® 11 64-bit
