| Description | Specification |
| Model Name | PRO X870E-S EVO WIFI |
| Chipset | AMD X870E |
| CPU Socket | Socket AM5 |
| CPU Support | AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors |
| Memory Support | 4x DDR5 UDIMM slots, up to 256GB, speeds up to DDR5 8200+ (OC) MT/s, AMD EXPO™ |
| Power Design | 12+2+1 Duet Rail Power System (DRPS), Digital PWM, Dual 8-pin CPU power connectors |
| PCB Construction | 6-layer Server-grade PCB with 2oz Thickened Copper |
| Graphics Output | 1x HDMI™ 2.1 (4K 60Hz), 1x Type-C DisplayPort via USB4 (4K 120Hz) |
| Expansion Slots | 1x PCIe 5.0 x16 (Steel Armor), 1x PCIe 4.0 x16 (x4 mode), 1x PCIe 3.0 x1 |
| M.2 Storage | 1x PCIe 5.0 x4 (2280/2260), 2x PCIe 4.0 x4 (22110/2280, 2280/2260) |
| SATA Storage | 4x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 for SATA; RAID 0, 1, 5 for M.2 NVMe |
| Networking & Wireless | Realtek® 5G LAN, Wi-Fi 7 (up to 2.9Gbps), Bluetooth® 5.4 |
| Audio | Realtek® ALC897 7.1-Channel HD Audio, Audio Boost |
| Rear USB Ports | 1x USB 40Gbps Type-C, 1x USB 20Gbps Type-C, 2x USB 10Gbps Type-A, 2x USB 5Gbps Type-A, 4x USB 2.0 |
| Front USB Headers | 1x USB 10Gbps Type-C, 4x USB 5Gbps Type-A, 6x USB 2.0 |
| Thermal Solution | Extended VRM Heatsink, 7W/mK MOSFET Thermal Pads, EZ M.2 Shield Frozr II, Enlarged Chipset Heatsink |
| EZ DIY Features | EZ PCIe Clip II, EZ M.2 Clip II, EZ M.2 Shield Frozr II, EZ Antenna, Pre-Installed I/O Shield |
| Diagnostics & Controls | EZ Debug LED, EZ Memory Detection LED, Flash BIOS Button, Clear CMOS Button |
| Operating System | Windows® 11 64-bit |
| Package Contents | EZ Wi-Fi Antenna, EZ M.2 Clip II Remover, 3x EZ M.2 Clip II, 2x SATA Cables, 1-to-2 EZ Conn-Cable (V1) |

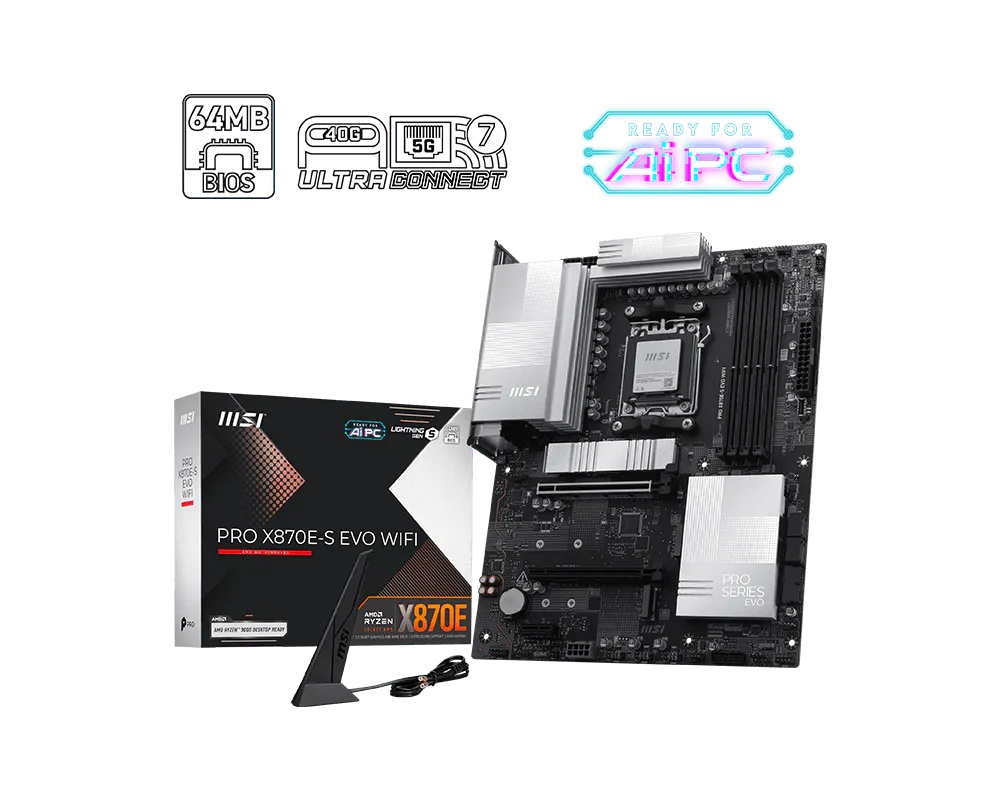

MSI X870E-S Evo WIFI
N/A / 1 Year WarrantyGet notified when this item is back in stock
