General | |
---|---|

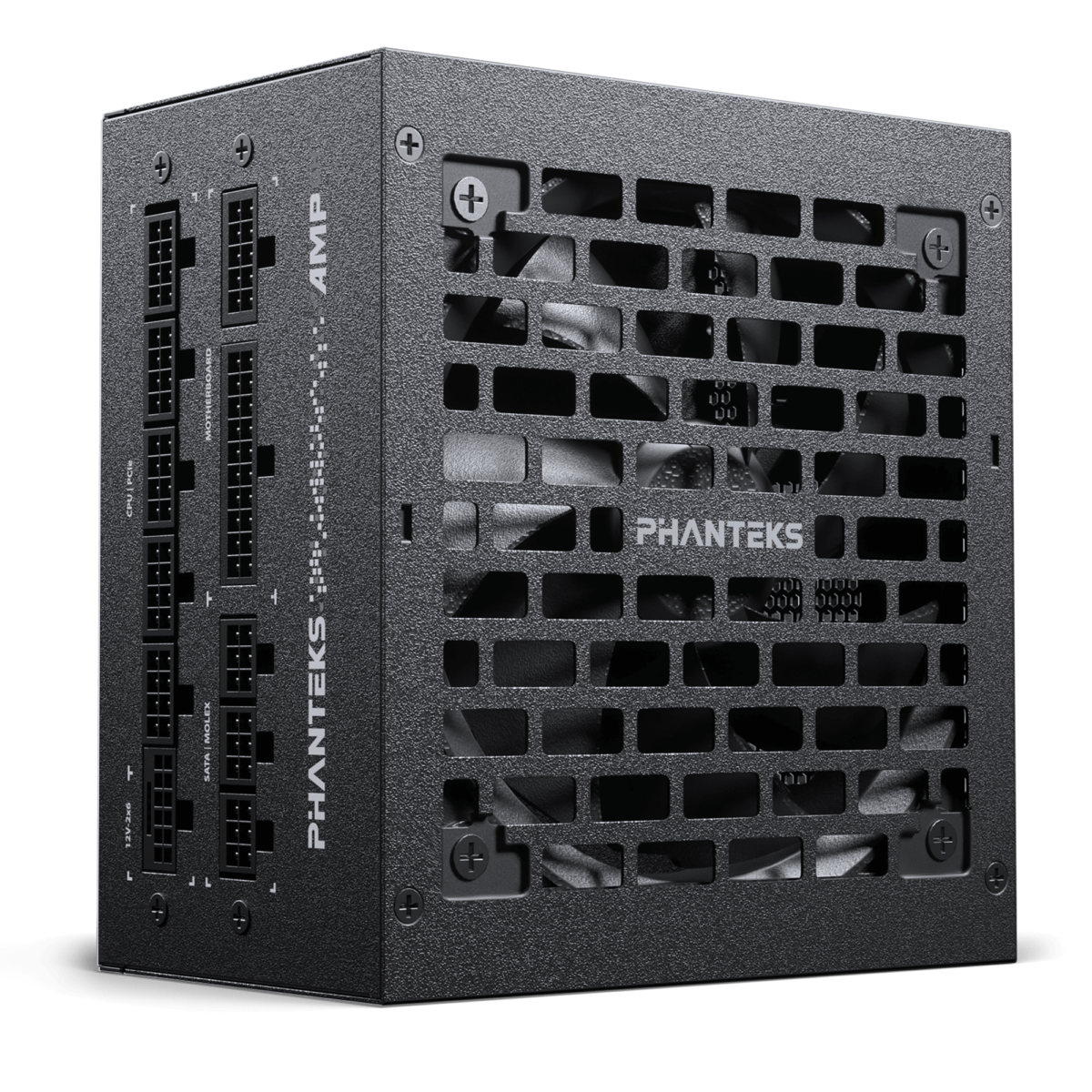

Model No. | PH-P850GH_BK01 |
UPC Code | EU | 886523510413 UK | 886523510475 US | 886523510536 |
Color | Black |
Dimensions (L x W x H) | 140 x 150 x 86 mm | 5.5 x 5.9 x 3.4 in |
Power Output | 850W |
PCIe GEN5 OUTPUT | 450W |
80 Plus | Gold |
Technical Details | |
Cooling Fan | 120 mm Hydraulic Bearing fan |
Back Plate | Fully modular |
MTFB | > 100,000 hrs at 25˚C (Excluding DC fan) |
Power Supply Output Connectors | Mainboard – 1x CPU | PCIe – 5x SATA | Molex – 3x 12V-2×6 – 1x |
Output Protection | OPP, OVP, UVP, SCP, OCP, OTP, No-Load Protection, Reset Protection |
Output Specifications | |
Output Voltage | 12V | 5V | 3.3V | -12V | 5VSB |
Maximum Output | 70A | 20A | 20A | 0.3A | 2.5A |
Maximum Capacity | 840W | 100W | 3.6W | 12.5W |
DC Output | 850W |
AC Output | 200-240V ~ 10A 50-60Hz |
Extra | |
Net Weight | 1.40 kg | 3.08 lbs |
Gross Weight | 3.20 kg | 7.05 lbs |
Scope of Delivery | 1x AMP GH 850W Power supply unit 1x C13 Power cord (1500mm) |
Textured Cables | 1x 18+10-Pin Mainboard (610 mm) 2x 4+4-Pin CPU (650 mm) 4x 6+2-Pin PCI-E (750 mm) 1x 12V-2×6 (720 mm) 3x 6-Pin 4-SATA (450 – 150 | 150 | 150 mm) 1x 6-Pin 2-SATA + 2-Molex (450 – 150 | 150 | 150 mm) |
Accessory Box | 1x User's manual 1x Installation guide 1x PSU bag 1x PSU tester 1x Zip tie bag 1x Screw pack 1x Velcro pack |
