Phanteks

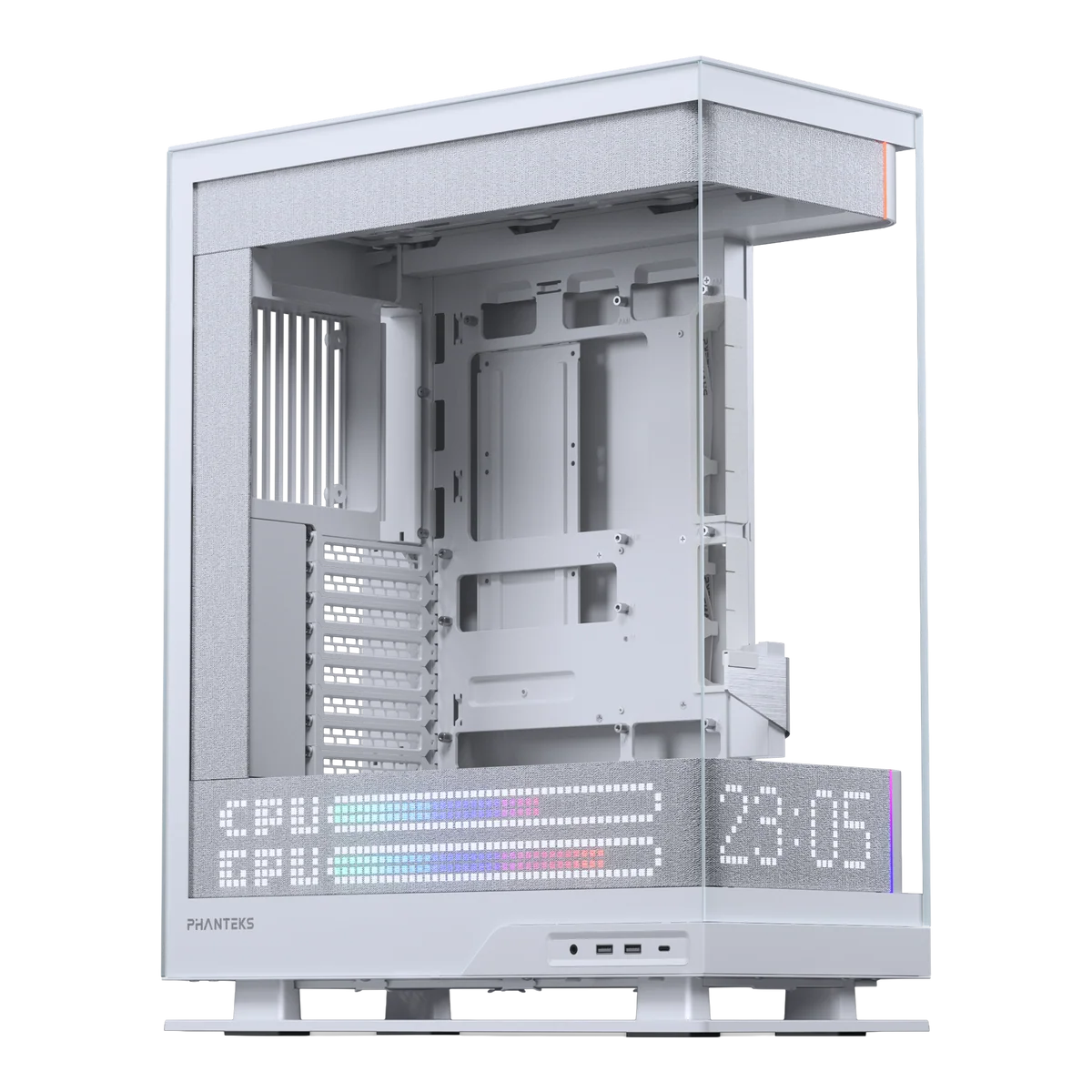

Phanteks Evolv X2 LED Matrix ARGB TG (White)

BND 259.00

Hurry up! Stock running low!

Estimated delivery: Oct 12 - Oct 16

Product Information

• Integrated 900-LED Display: Concealed behind a fine fabric interior panel to transform the front chamber into an animated canvas for customizable lighting, real-time system stats, and thermal monitoring.

• Floating Vertical Airflow Architecture: An elevated chassis foundation draws cool air directly from the bottom to sweep upward across the GPU and CPU before exhausting heat out the top.

• Flush Hardware Integration: Top and bottom cooling mounts sit completely flush within the internal frame to present a clean, unified, and unobstructed view of components.

• Premium Steel & Aluminum Showcase: Built with a super-strong C-frame construction paired with multi-sided clear tempered glass panels to display high-end hardware configurations from multiple viewing angles.

• Next-Gen Board Compatibility: Full native support for standard E-ATX, ATX, Micro-ATX, and Mini-ITX boards, as well as rear-connect mainboards including ASUS BTF, MSI Project Zero, and Gigabyte Project Stealth.

• Software-Driven Matrix Control: Easily manage widgets, clock speeds, system loads, and custom animations via the Windows NexLinq software with minimal CPU utilization.

Product Summary

The Phanteks Evolv X2 LED Matrix ARGB TG features an integrated 900-LED customizable display hidden behind a refined fabric interior. Engineered with a premium aluminum C-frame, multi-sided tempered glass, and an elevated vertical cooling structure, it delivers exceptional thermal performance and a clean, hardware-focused presentation.

View details

Product Specifications

Warranty Information

Reviews

Category	Specification
Form Factor	Mid-Tower (ATX)
Dimensions (D × W × H)	454 × 228 × 588 mm (17.87 × 8.98 × 23.15 in)
Net Weight	14.2 kg (31.3 lbs)
Gross Weight	16.5 kg (36.4 lbs)
Structural Materials	Steel chassis, aluminum panels, tempered glass, ABS plastic, polyester fabric
Front Display	Integrated 900-LED Matrix Screen with fine fabric diffusion
Display Power Requirements	5 V / 5.3 A
Display Connectors	1× motherboard USB 2.0 header (500 mm), 1× SATA power cable (500 mm)
Ambient Lighting	3× pre-installed D-RGB LED strips (top-to-bottom)
Lighting Control	Phanteks controller or ARGB-capable motherboard header
Display Software	Phanteks NexLinq App (Windows)
Motherboard Support	E-ATX (up to 280 mm wide), ATX, Micro-ATX, Mini-ITX
Rear-Connect Board Support	ASUS BTF, MSI Project Zero, Gigabyte Project Stealth
Expansion Slots	8 standard slots
Vertical GPU Mounting	Supported (requires optional riser cable)
2.5" SSD Storage Bays	5 positions total
3.5" HDD Storage Bays	2 positions (or 1× 3.5" + 2× 2.5" via bottom storage bracket)
Top Fan Mounts	3× 120 mm
Bottom Fan Mounts	3× 120 mm
Rear Fan Mounts	1× 120 mm
Maximum Fan Capacity	Up to 7× 120 mm fans
Top Radiator Support	Up to 360 mm AIO (maximum dimensions: ~415 × 130 × 32 mm)
CPU Cooler Clearance	Up to 170 mm height
GPU Length Clearance	Up to 380 mm length
GPU Width Clearance	Up to 170 mm width
Power Supply Clearance	Up to 250 mm PSU length
Front Panel I/O	1× USB-C 3.2 Gen 2×2, 2× USB 3.0 (Type-A), 1× 3.5 mm combo audio jack, Power button, Reset button
Included Accessories	Pre-installed storage & SSD brackets, screw kit, D-RGB motherboard adapter cable, microfiber cloth, standoff removal tool

Product Warranty: 3 Months (Case Fans)

Warranty covers defects or dead-on-arrival items with original receipt and packaging. It excludes damage from misuse, power issues, unauthorized repairs, and software/data.
To claim, contact us within the warranty period with all accessories and packaging. Warranty is non-transferable and for the original buyer only.
For questions, contact us or check our warranty information.
