Phanteks NV5S (Black)
- Near-seamless tempered glass front and side panels for a panoramic view of your components
- High-performance airflow with ultra-fine mesh and effective dust filtration
- Supports up to 7 x 120mm fans and dual 360mm radiator locations for optimal cooling
- Customizable D-RGB lighting, including software-free controller and 4x 120mm D-RGB fans

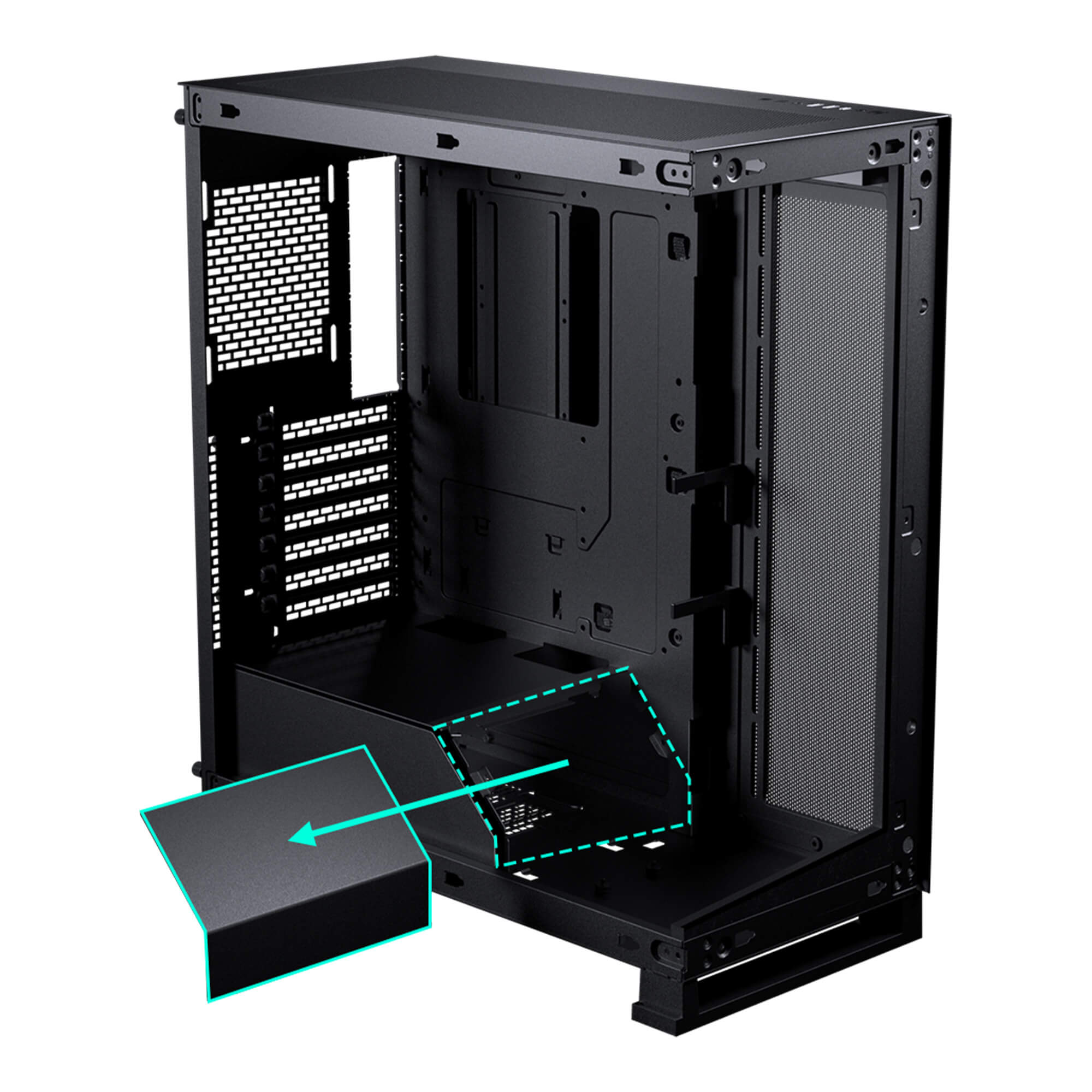

- Convenient removable PSU cover for effortless cable management
- GPU support bracket included; vertical GPU option (bracket sold separately)
- Extensive front I/O: USB-C Gen2, dual USB 3.0, D-RGB controls, audio/mic
| Model Number | PH-NV523S_DBK01 |
| Colour | Black |
| Dimensions (W x D x H) | 218 x 450 x 505 mm / 8.6 x 17.7 x 19.9 in |
| Form Factor | Mid Tower |
| Material | Steel Chassis, Tempered Glass |
| Motherboard Support | ATX, micro-ATX, mini-ITX, E-ATX (up to 280mm) |
| Front I/O Ports | 2 x USB 3.0, USB-C Gen2, Audio, Power, Reset, D-RGB |
| Included Fans | 4 x 120mm D-RGB |
| Removable PSU Cover | Yes |
| GPU Support Bracket | Yes (vertical mount not included) |
| Expansion Slots | 7 |
| Storage Support | 1 x 3.5”, 3 x 2.5” SSD |
| Liquid Cooling Support | Top: Up to 360mm, Side: Up to 360mm, Rear: 120mm |
| Max GPU Length | 430mm |
| Max CPU Cooler Height | 170mm |
| Max PSU Length | 195mm |
| Window | Tempered Glass (Front & Side) |
| Weight | 8.35kg |
Phanteks NV5S (Black)
113296 / 3 Months WarrantyGet notified when this item is back in stock
