Sapphire

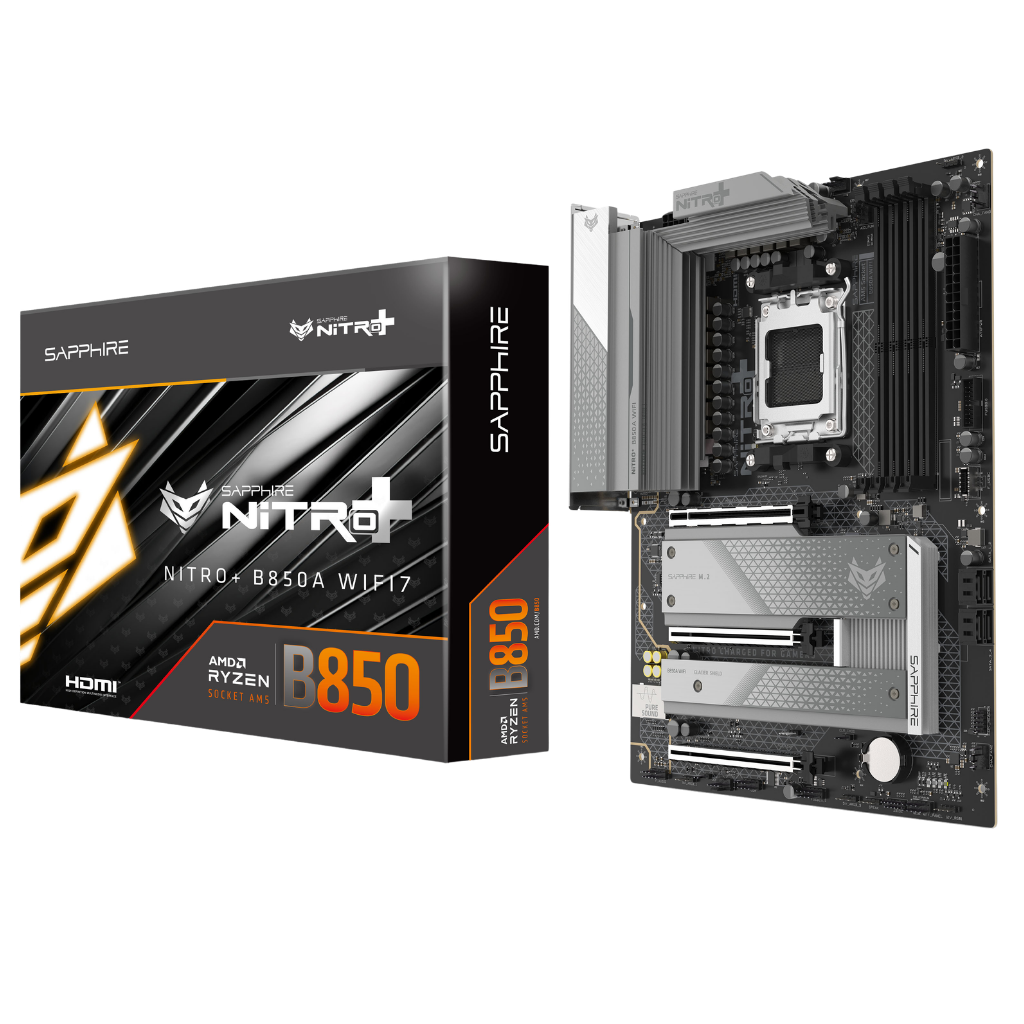

Sapphire Nitro+ B850A WIFI 7

BND 299.00

In stock!

Estimated delivery: Aug 10 - Aug 14

Product Information

• Robust Power Delivery: 12+2+1 smart power phase design (55A per phase) with dual 8-pin connectors delivers steady current to unleash your CPU's full potential.

• Extreme Memory Speeds: Dual-channel DDR5 support up to 8000+ MT/s (OC) across 4 slots (up to 256GB) ensures swift multitasking and lower latency.

• Next-Gen Storage & Expansion: PCIe 5.0 x16 slot and triple M.2 slots—including a PCIe 5.0 M.2 supporting speeds up to 16 GB/s—maximize data throughput.

• Cutting-Edge Connectivity: Integrated Wi-Fi 7, Bluetooth 5.4, and 2.5G Ethernet provide ultra-low latency for seamless online gaming and streaming.

• Signature Thermal Armor: Full-coverage M.2 heatsinks, large VRM dissipation armor, and dual-layer chipset cooling keep high-end components running cool.

Product Summary

Power high-performance gaming with the Sapphire Nitro+ B850A WIFI 7 motherboard. Engineered for AMD AM5 processors, it offers robust 12+2+1 phase power delivery, DDR5 memory speeds up to 8000+ MT/s, ultra-fast PCIe 5.0 storage, and cutting-edge Wi-Fi 7 connectivity for ultimate system stability.

View details

Product Specifications

Warranty Information

Reviews

Specification	Details
Chipset	AMD® B850
CPU Support	AMD Socket AM5 (Supports Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors)
Power Design	12+2+1 Smart Power Phases (55A Per Phase), Dual 8-Pin CPU Power Connectors, NITRO+ Capacitors
Memory Support	4x DDR5 DIMMs, Dual Channel, Max Capacity 256GB (4x 64GB), up to 8000+ MT/s (OC)
PCIe Expansion Slots	1x PCIe 5.0 x16 extended slot 1x PCIe 4.0 x4 in x16 slot 1x PCIe 4.0 x2 in x16 slot
Storage	1x PCIe 5.0 M.2 slot (Up to 16 GB/s transfer speed) 2x PCIe 4.0 M.2 slots 4x SATA ports
Thermal Cooling	High-conductivity aluminum heatsinks, Large-area VRM heatsink armor, Full-coverage M.2 heat dissipation armor, Dual-layer chipset heatsink
Wireless Networking	M.2 Wi-Fi 7 Module (Supports 802.11 a/b/g/n/ac/ax/be, 2.4 GHz / 5 GHz / 6 GHz bands), Bluetooth 5.4 Support
Wired Networking	Realtek® RTL8125BG 2.5 Gigabit Ethernet
Audio	Realtek® ALC897 HD Audio, 7.1 Channel
Display Connectors	1x DisplayPort, 1x HDMI™
Front USB Headers	1x USB 3.2 Gen1 Type-C 1x USB 3.2 Gen1 (2x Type-A) 1x USB 2.0 (2x Type-A)
Rear I/O Ports	1x DisplayPort 1x HDMI™ 1x RJ45 2.5G LAN 2x Wi-Fi Antenna Connectors 1x One-click Flash BIOS Button 4x USB 2.0 3x USB 3.2 Gen2 Type-A (10Gbps) 1x USB 3.2 Gen2 Type-C (10Gbps) 6x Audio Jacks
Diagnostics	Debug LED (DRAM: Yellow, CPU: Red, GPU: White, Boot: Green)
Form Factor / Dimensions	ATX, 305 mm x 244 mm
Durability Features	Pre-installed IO backboard, ESD protection, stainless steel moisture-resistant components

Product Warranty: 1 Year

Warranty covers defects or dead-on-arrival items with original receipt and packaging. It excludes damage from misuse, power issues, unauthorized repairs, and software/data.
To claim, contact us within the warranty period with all accessories and packaging. Warranty is non-transferable and for the original buyer only.
For questions, contact us or check our warranty information.
