Thermalright

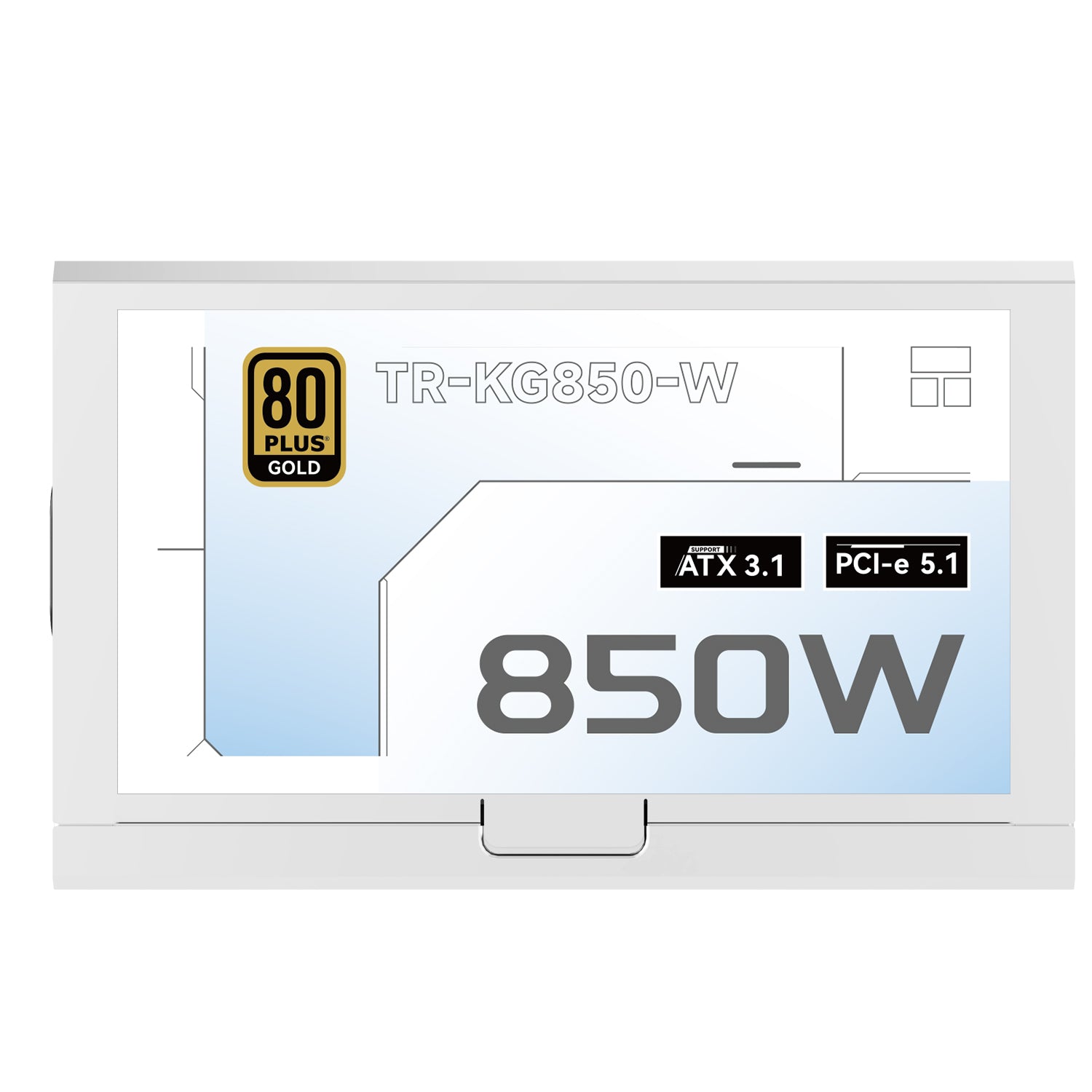

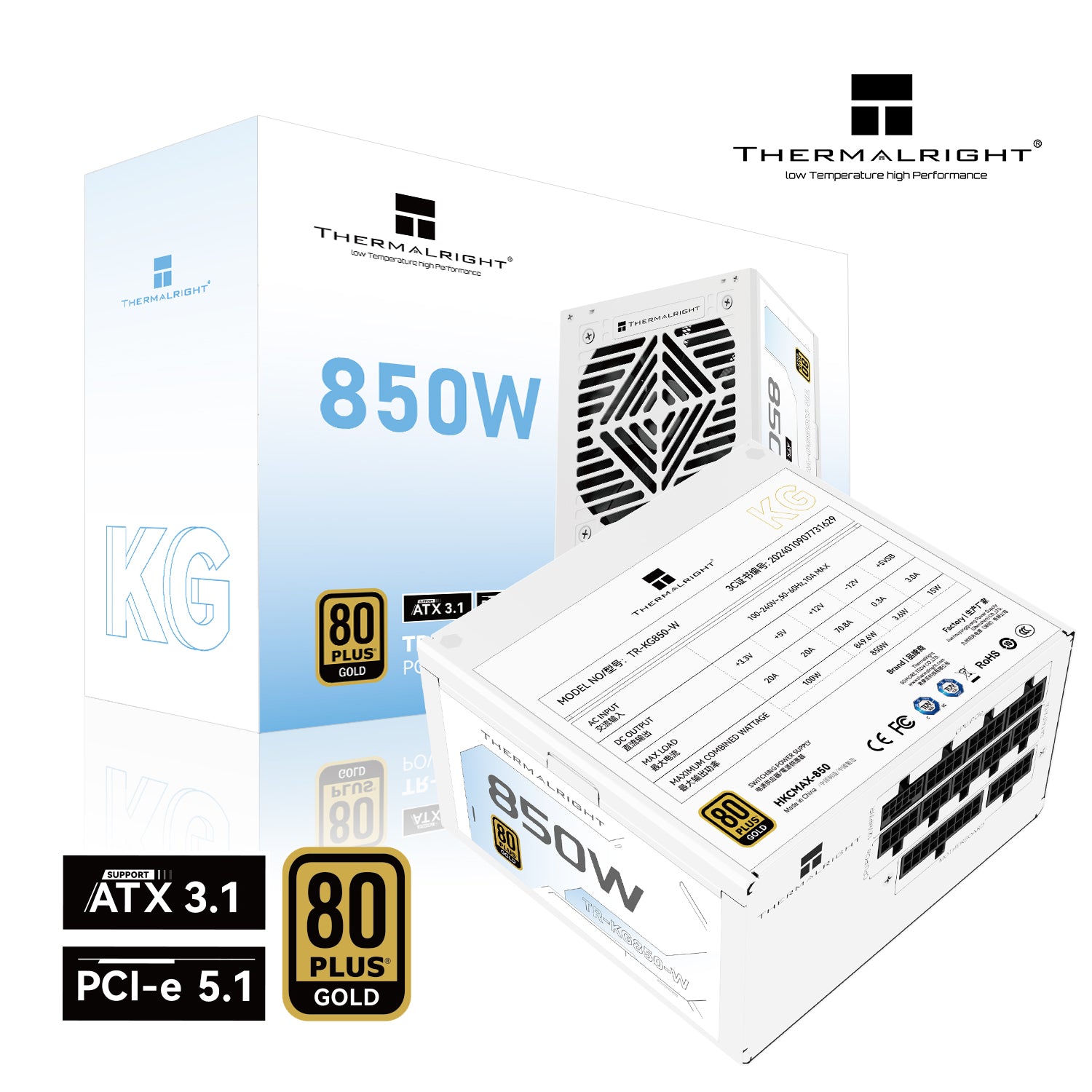

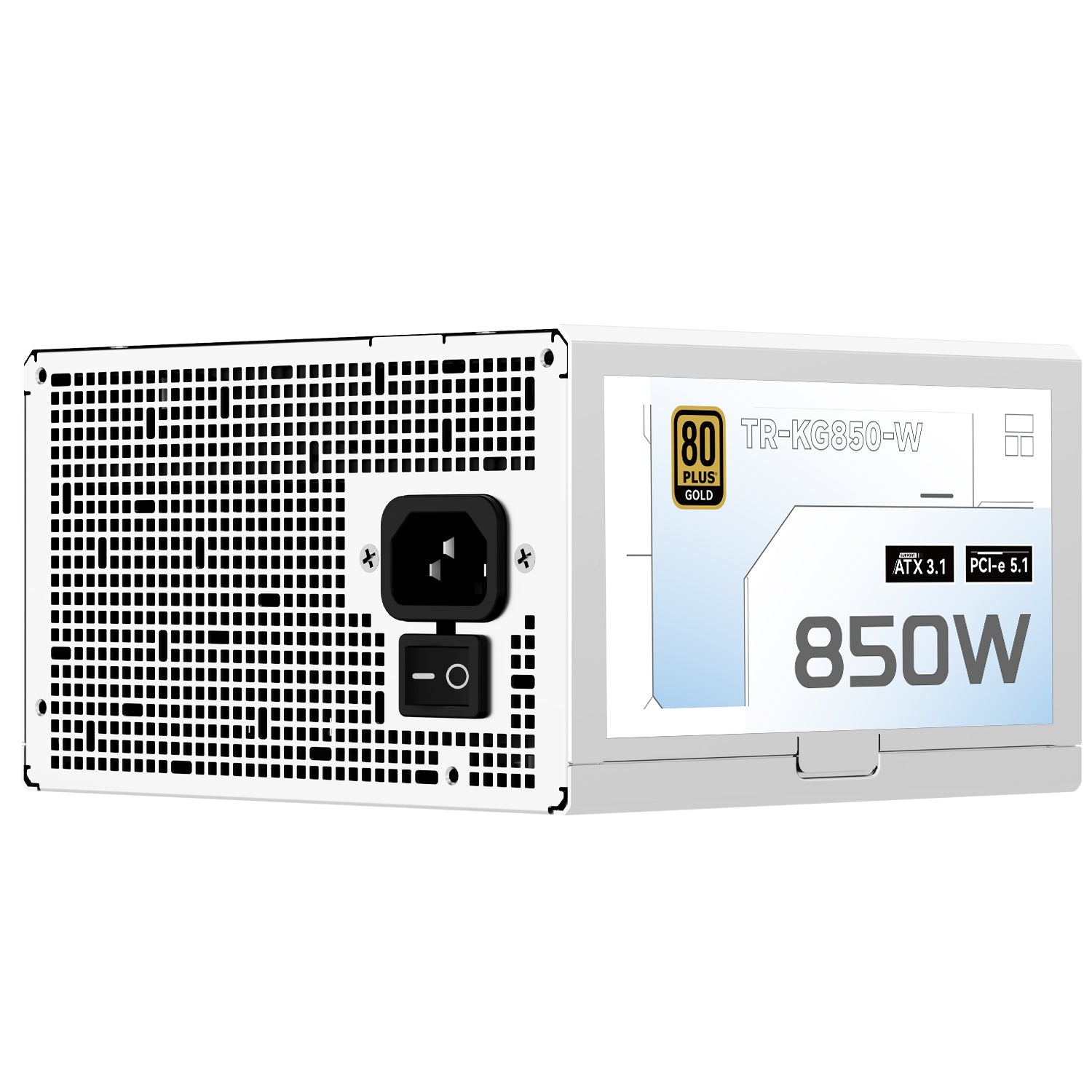

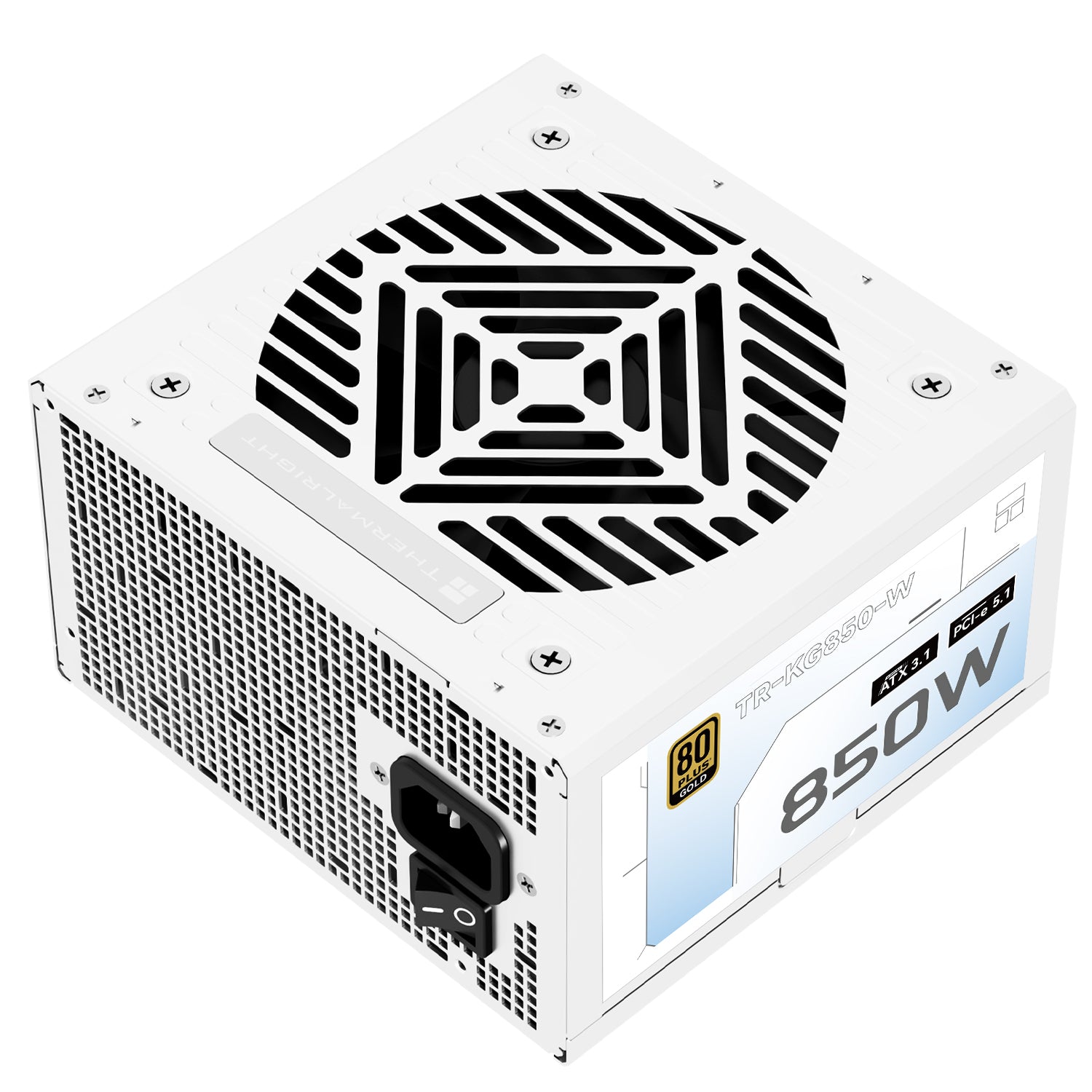

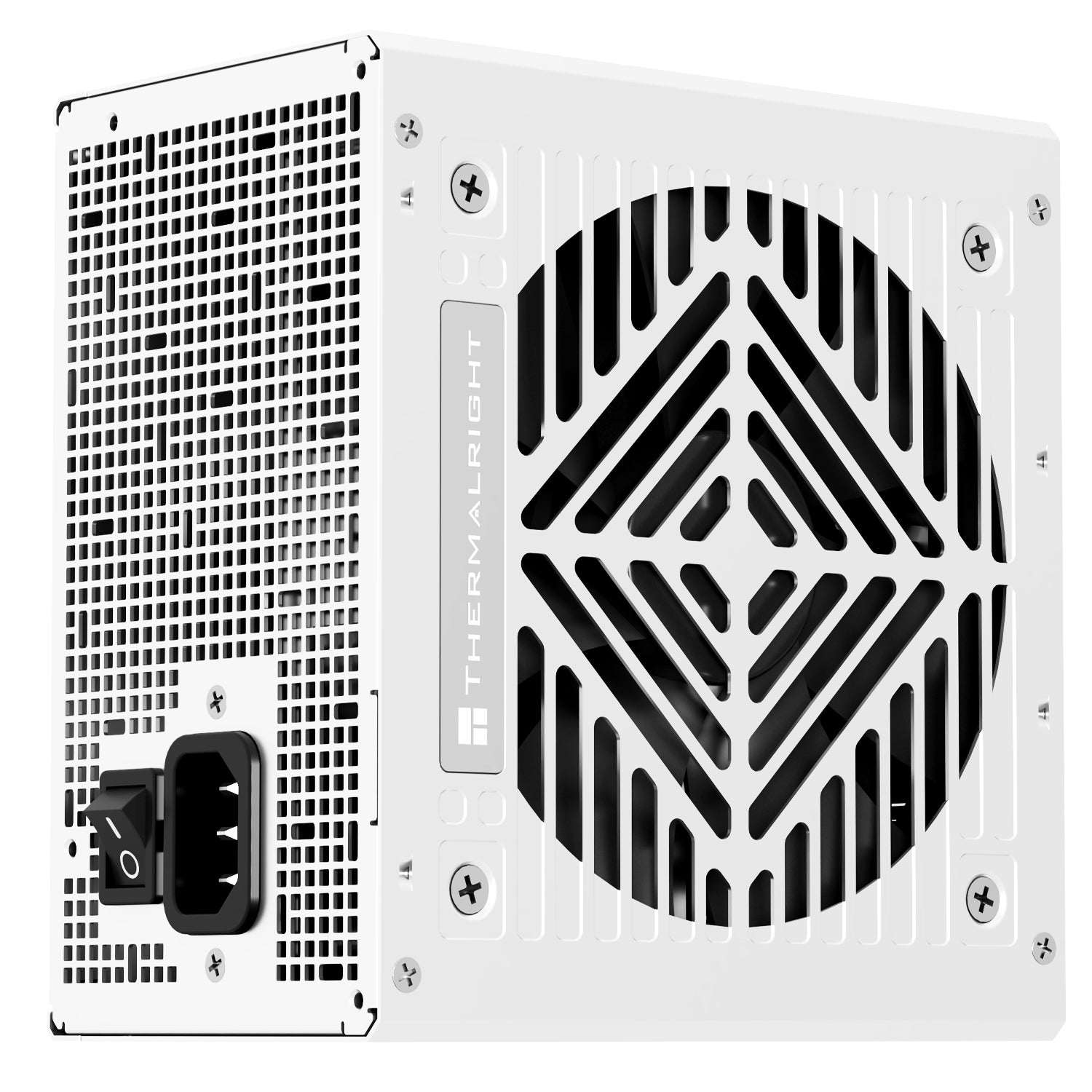

Thermalright KG850 850W ATX 3.1 + Gen 5.1 (White)

BND 140.00

Hurry up! Stock running low!

Estimated delivery: Nov 28 - Dec 02
Product Information
  • 80 PLUS Gold efficiency certification
  • Fully compatible with Intel ATX 3.1 specification, up to 200% power excursion
  • Ready for PCI-E Gen 5.1 graphics cards with 12V-2X6 cable support
  • LLC resonance + DC-DC circuit design
  • Japanese main capacitor rated for 105°C temperature resistance
  • Multiple protection circuit designs
  • Full modular cables
  • 100-240V full voltage design
Product Summary

The KG-850 is a fully modular 850W power supply with 80 PLUS Gold efficiency, supporting Intel ATX 3.1 and PCI-E Gen 5.1 graphics cards. With premium Japanese capacitors, advanced circuit design, and extensive protection features, it ensures reliability and performance for high-demand systems.
Thermalright KG850 850W ATX 3.1 + Gen 5.1 (White)
BND 140.00
112778 / 1 Year W...
Pairs well with
Related categories
View details
Model
SP-850
Efficiency
80 PLUS Platinum
Modular
Full-Modular
AC Input
100-240V ~, 11-5.5A, 47-63Hz
DC Output
+3.3V, +5V, +12V, -12V, +5VSB
Max Output Current
+3.3V: 20A, +5V: 20A, +12V: 70.5A, -12V: 0.3A, +5VSB: 2.5A
Max Output Power
130W (+3.3V/+5V), 846W (+12V), 3.6W (-12V), 12.5W (+5VSB)
M/B Connector
MB 20+4 PIN 600MM X1
CPU Connector
CPU 4+4 PIN 650MM X2
PCI-E Connectors
PCI-E 6+2 PIN 650MM X3, 12V-2X6 TYPE PCI-E 5.1 600MM X1
SATA + PATA
450MM+150MM+150MM+150MM X2, 500MM+150MM+150MM X1
Fan Size
120 mm
Operating Temperature
0-40°C
MTBF
>100K Hours
Protections
OPP/OVP/OTP/OCP/SCP/UVP
