| Specification | Details |

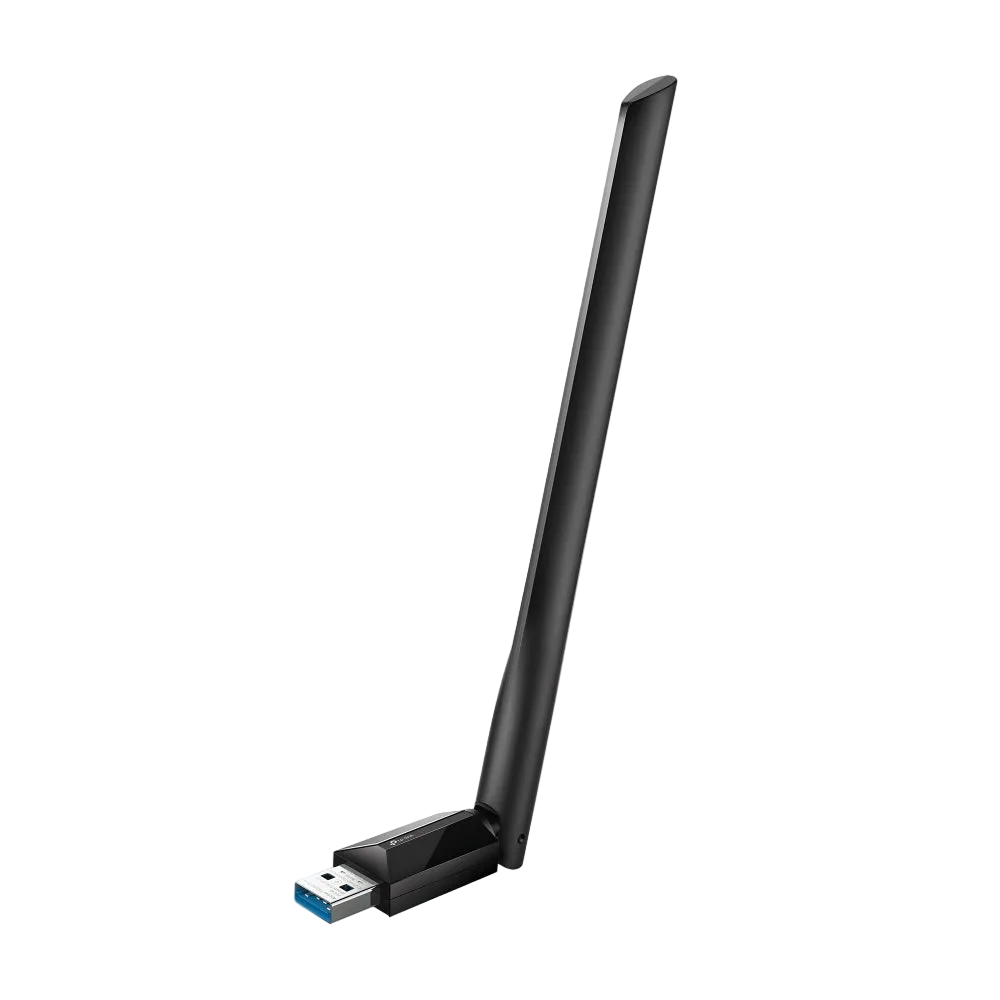

| Product Model | Archer TX35U Plus |
| Device Type | AX1800 High Gain Wireless USB Adapter |
| Wireless Standards | IEEE 802.11a/b/g/n/ac/ax |
| Signal Rate |
5 GHz: Up to 1201 Mbps (11ax), 867 Mbps (11ac), 300 Mbps (11n), 54 Mbps (11a) 2.4 GHz: Up to 574 Mbps (11ax), 300 Mbps (11n), 54 Mbps (11g), 11 Mbps (11b) |
| Antenna Type | 2× High-Gain Dual-Band Antennas |
| Interface | SuperSpeed USB 3.0 |
| Wireless Modes | Client Mode, Hotspot Mode |
| Wireless Security | WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK |
| Transmission Power |
5 GHz: 19 dBm (FCC) / 17 dBm (CE) (EIRP) 2.4 GHz: 18 dBm (FCC) / 18 dBm (CE) (EIRP) |
| Reception Sensitivity (5 GHz) |
11ax HE80 MCS0: -88 dBm 11ax HE80 MCS11: -60 dBm 11a 54Mbps: -75 dBm 11ac VHT80 MCS0: -87 dBm 11ac VHT80 MCS9: -62 dBm |
| Reception Sensitivity (2.4 GHz) |
11ax HE40 MCS0: -92 dBm 11ax HE40 MCS11: -63 dBm 11g 54Mbps: -79 dBm 11n HT40 MCS9: -68 dBm |
| Dimensions (W x D x H) | 57.8 × 18 × 173.4 mm (2.28 × 0.71 × 6.83 in) |
| Supported OS | Windows 10, Windows 11 |
| Environmental Parameters |
Operating Temperature: 0°C–40°C (32°F–104°F) Operating Humidity: 10%–90% non-condensing Storage Humidity: 5%–90% non-condensing |
| Certifications | FCC, CE, RoHS |
| Package Contents | Archer TX35U Plus AX1800 Adapter, Quick Installation Guide |
