Deepcool

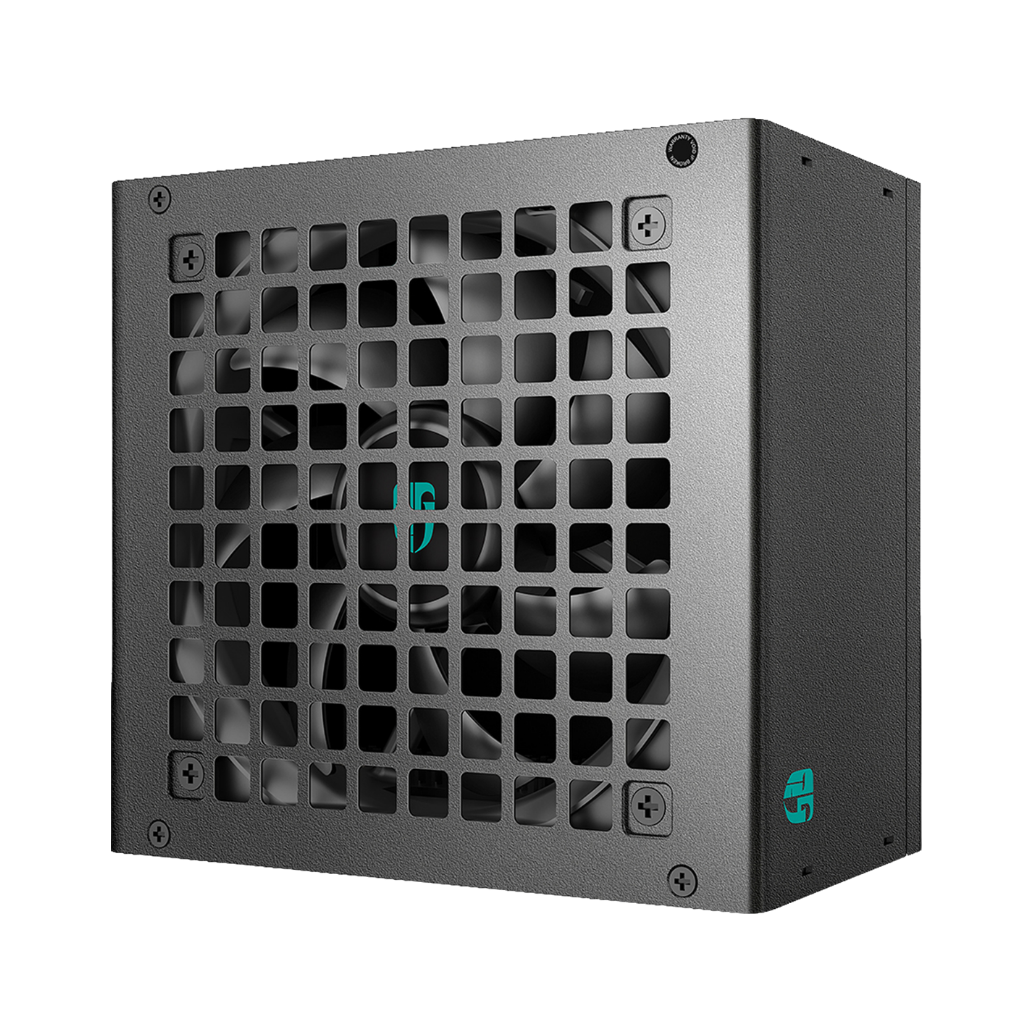

Deepcool Gamerstorm PQ1000G 1000W (Platinum)

BND 169.00
Sold out

Out of stock

Estimated delivery: Sep 23 - Sep 27
Product Information

• ATX 3.1 & PCIe 5.1 Ready: Easily handles 2x total system power excursion spikes to safely feed modern, high-draw GPUs and CPUs.

• Dedicated 12V-2x6 Cable: Delivers up to 600W of direct power via a heavy-duty, 16AWG sleeved copper-core cable to power top-tier graphics cards.

• Compact 140mm Depth: Fits effortlessly into most standard ATX chassis, leaving maximum room for clean cable management and airflow.

• Japanese Capacitors & Platinum Efficiency: Uses 100% Japanese electrolytic capacitors with Half-Bridge LLC and DC-to-DC topology to ensure Cybenetics Platinum efficiency and smooth power.

• Dynamic FDB Cooling: Features a 120mm Fluid Dynamic Bearing fan that adjusts speed to match thermal loads for near-silent operation under load.

• Full Suite of Electrical Safeguards: Shields critical PC components with robust multi-layer protections, including OPP, OVP, SCP, OTP, OCP, UVP, SIP, and NLO.
Product Summary

The DeepCool GamerStorm PQ1000G delivers 1000W of ultra-reliable power engineered for modern, power-hungry components. Featuring ATX 3.1 compliance, Cybenetics Platinum efficiency, and a native 12V-2x6 cable, this fully modular PSU supplies stable voltage and transient spike protection to safeguard your high-end gaming GPU.
Pairs well with
Deepcool Gamerstorm PQ1000G 1000W (Platinum)
BND 169.00
N/A / 1 Year Warr...
Related categories
View details
Specification Details
Model DeepCool GamerStorm PQ1000G
Model Number R-PQA00G-FD1B-JGUK-V1
Total Max Power Output 1000W
ATX Standard Compliance ATX12V V3.1 / EPS 2.92
OEM Manufacturer Helly Technology
Modularity Fully Modular
Efficiency Certification Cybenetics Platinum (115V: 89–91% / 230V: 91–93%) / 80 PLUS Gold
Noise Rating Cybenetics A- (25–30 dBA)
Form Factor ATX
Dimensions (W x L x H) 150 mm x 140 mm x 86 mm
Weight 1.5 kg (3.31 lbs)
Fan Size 120 mm x 120 mm x 25 mm
Fan Bearing Type Fluid Dynamic Bearing (FDB)
Fan Model HA1225M12F-Z
Topology Active PFC + Half Bridge SRC LLC + DC-to-DC
Capacitors Full Japanese Electrolytic Capacitors
Hold-Up Time ≥ 16 ms (at 100% full load)
Power Good Signal 100–150 ms
Operating Temperature 0 °C to 40 °C (Continuous Full Load)
MTBF 100,000 Hours
Alternative Low Power Mode Supported
Protections OPP, OVP, SCP, OTP, OCP, UVP, SIP, NLO
+12V Combined Output 996W / 83A (Single +12V Rail)
+3.3V & +5V Combined Output 120W (20A / 20A)
+5VSB Output 15W / 3A
-12V Output 3.6W / 0.3A
Motherboard Power Connector 1x ATX 24-Pin (20+4) (595mm cable length)
CPU Power Connectors 2x EPS 8-Pin (4+4) (2x cables, 610mm cable length)
16-Pin GPU Connector 1x PCIe 12V-2x6 / 12+4 Pin 600W (650mm cable length)
Standard PCIe Connectors 3x PCIe 6+2 Pin (3x cables, 600mm cable length)
SATA Connectors 8x SATA (2x cables, 120mm spacing)
Peripheral Connectors 4x 4-Pin Molex (1x cable, 120mm spacing)
In-Cable Capacitors No
Regulatory & Environmental EAC, ErP 2013
