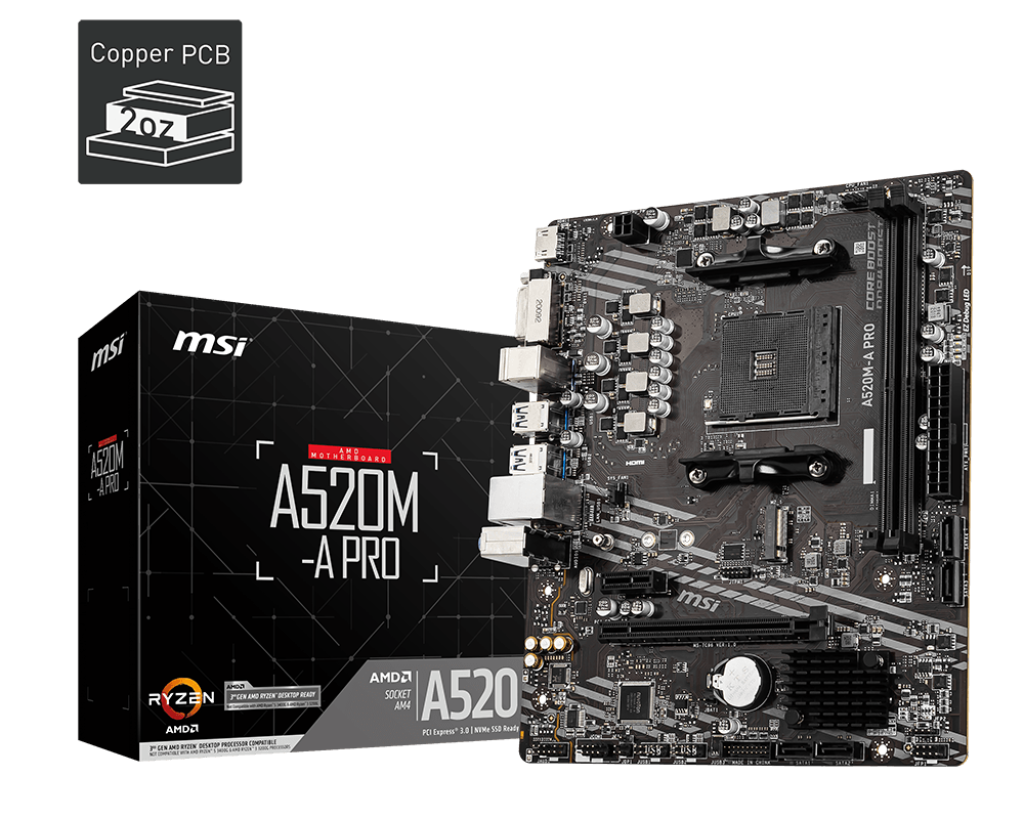

A520M-A PRO
- Supports AMD Ryzen™ 5000 & 3000 Series desktop processors and AMD Ryzen™ 4000 G-Series desktop processors
- Supports DDR4 Memory, up to 4600(OC) MHz
- Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs
- Core Boost: With premium layout and digital power design to support more cores and provide better performance.
- DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability.
- 2oz Thickened Copper PCB: An enhanced PCB design improves heat dissipation and performance reliability.
- Audio Boost: Reward your ears with studio grade sound quality
- Dragon Center: A brand new software which integrates all MSI exclusive tools with user friendly user interface.
PRODUCT SPECIFICATIONS
| SOCKET | AMD Socket AM4 |
| CHIPSET |
AMD® A520 Chipset |
| MEMORY CHANNEL |
Dual |
| DIMM SLOTS |
2 |
| MAX MEMORY (GB) |
64 |
| PCI-E X16 |
1 |
| PCI-E GEN |
Gen3 |
| PCI-E X1 |
1 |
| SATAIII |
4 |
| M.2 SLOT |
1 |
| RAID |
0/1/10 |
| TPM (HEADER) |
1 |
| USB 3.2 PORTS (FRONT) |
2 (Gen 1, Type A) |
| USB 3.2 PORTS (REAR) |
4 (Gen 1, Type A) |
| USB 2.0 PORTS (FRONT) |
4 |
| USB 2.0 PORTS (REAR) |
2 (Type A) |
| SERIAL PORTS (FRONT) |
1 |
| AUDIO PORTS (REAR) |
Realtek® ALC892/ALC897 Codec |
| DVI-D |
1 |
| HDMI |
1 |
| DIRECTX |
12 |
| FORM FACTOR |
MATX |
MSI A520M-A Pro
104921 / 1 Year WarrantyGet notified when this item is back in stock
