Product Description

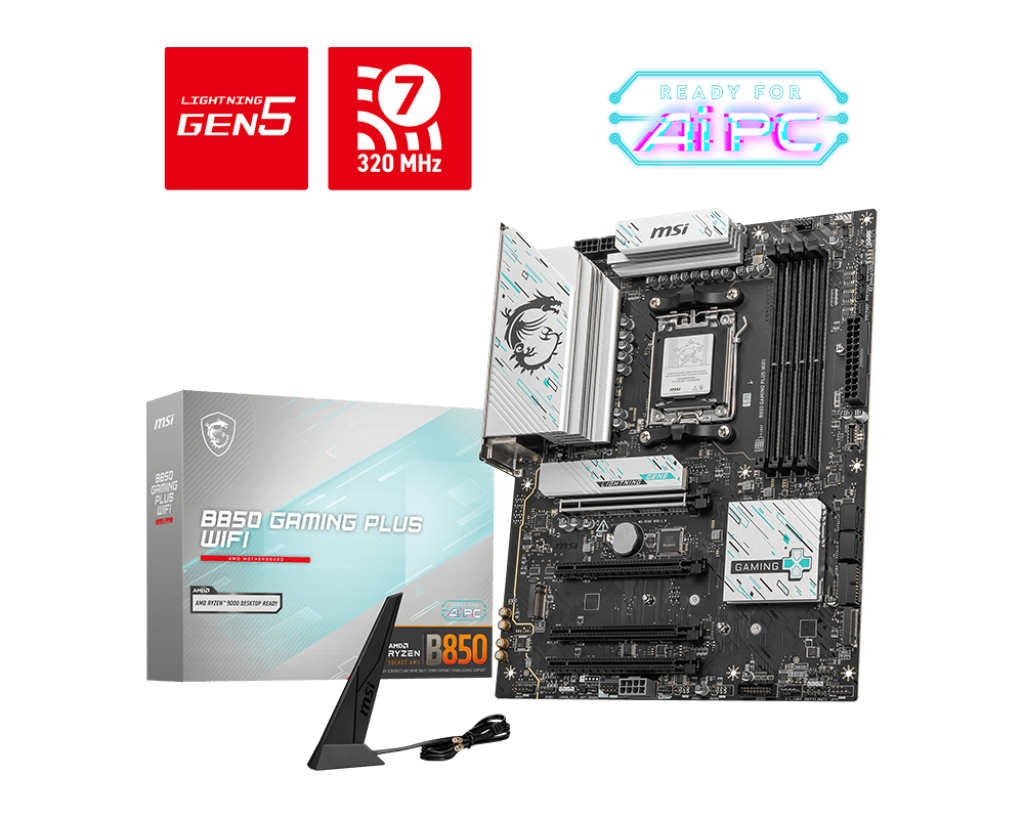

xMSI B850 GAMING PLUS WIFI
- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8200+ MT/s (OC)
- Ultra Performance: 12+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 6-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- High-speed Connectivity: 5G LAN with Full-speed Wi-Fi 7 Solution - The latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Clip II and EZ Antenna
- Audio Boost: Reward your ears with studio-grade sound quality for the most immersive gaming experience
Product Specifications
| Category | Specifications |
|---|---|
| Chipset | AMD B850 |
| CPU Socket | AM5 |
| Processor Support | Supports AMD Ryzen 9000/8000/7000 Series Desktop Processors |
| Memory Support | DDR5, Dual Channel (Overclocked speeds up to 8200+ MT/s supported) |
| Expansion Slots | - 1x PCIe 5.0 x16 slot (with Steel Armor) - 2x PCIe x1 slots |
| Storage | - 3x M.2 slots (Lightning Gen 5 for one of them) - 6x SATA 6Gb/s |
| Networking | - Wi-Fi 7 (802.11be) - 5G LAN |
| Audio | High definition, studio-grade Audio Boost |
| Rear I/O Ports | - 1x HDMI - 1x DisplayPort - 2x USB 3.2 Gen 2 Type-A - 2x USB 3.2 Gen 1 Type-A - 4x USB 2.0 Type-A |
| Internal Connectors | - USB Front Type-C header - USB 3.2 Gen 1 headers - ARGB and RGB headers |
| Cooling | - Frozr AI Cooling - Fan Speed Control (BIOS/Smart Fan) - Pre-installed I/O shield for airflow optimization |
| Power Design | 12+2+1 Duet Rail Power System with dual 8-pin CPU power connectors |
| Special Features | - Click BIOS X - One-click overclocking with Game Boost - Core Boost Technology - Memory Boost Technology |
| Form Factor | ATX |
| Dimensions | 12" x 9.6" |
| Other Features | - Mystic Light with ARGB Gen 2 support - EZ DIY features (Tool-less design for M.2 and PCIe) |
