Sapphire

Sapphire Pulse B850M WIFI

BND 219.00

In stock!

Estimated delivery: Aug 10 - Aug 14

Product Information

• AMD AM5 Socket Support: Compatible with AMD Ryzen™ 9000, 8000, and 7000 Series processors for peak desktop performance.

• Robust Power Delivery: Features a 7+2+1 smart power phase design (60A per phase) to deliver stable power without thermal throttling under heavy workloads.

• High-Speed DDR5 Memory: Dual-channel slot design supports up to 256GB DDR5 memory overclocked up to 7600+ MT/s.

• Next-Gen M.2 Storage: Equipped with dual M.2 slots (1x PCIe 5.0 and 1x PCIe 4.0) delivering ultra-fast data transfer speeds up to 10.08 GB/s.

• Seamless Wireless Connectivity: Onboard Wi-Fi 6 and Bluetooth support connect all your wireless peripherals effortlessly without extra adapters.

• Advanced Thermal Management: Heavy-duty PULSE heatsink armor cools the VRM, M.2 SSDs, and chipset, supported by 5 fan headers.

Product Summary

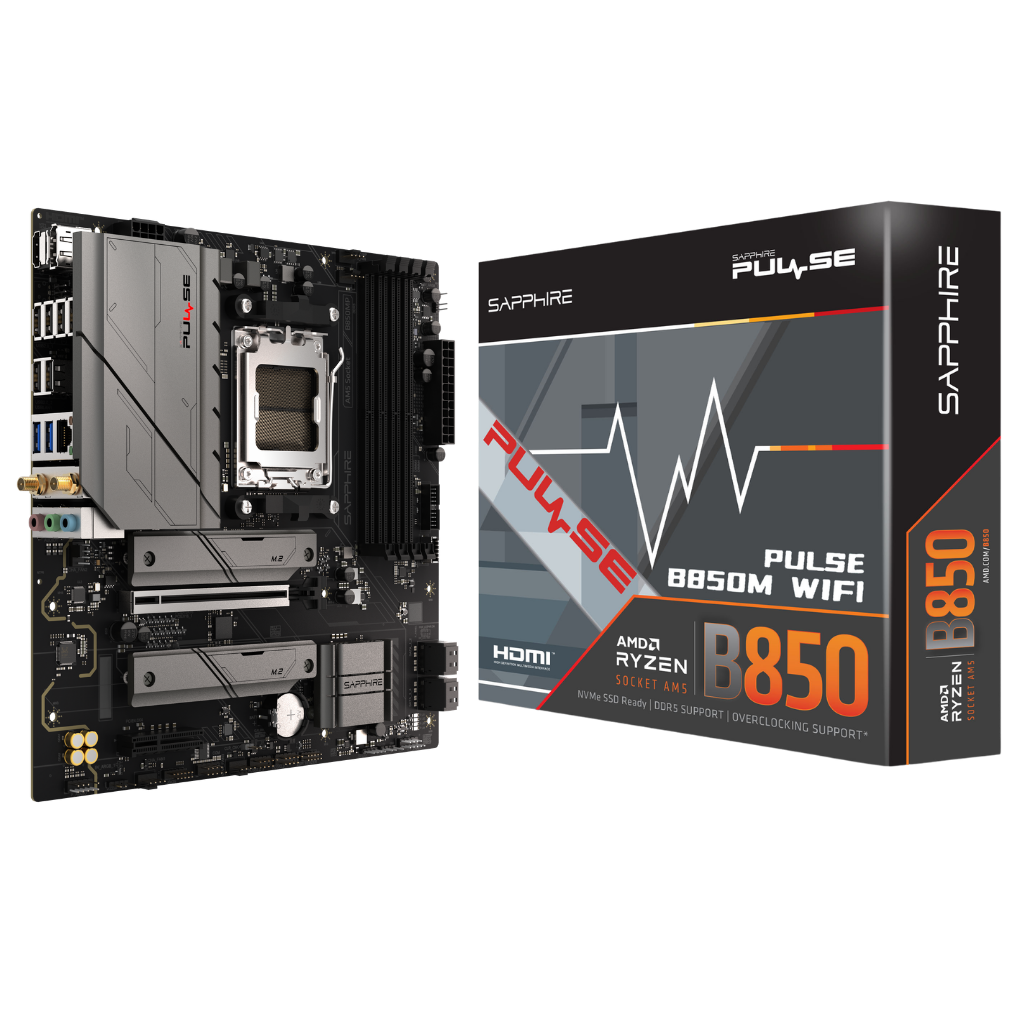

The Sapphire Pulse B850M WIFI motherboard delivers dependable power and high-speed connectivity for AMD Socket AM5 processors. Equipped with a 7+2+1 phase power design, high-frequency DDR5 support, PCIe 5.0 M.2 storage, and onboard Wi-Fi 6, it provides the ultimate performance foundation for compact gaming builds.

View details

Product Specifications

Warranty Information

Reviews

Specification Category	Details
Chipset	AMD B850
CPU Support	AMD Socket AM5 (Ryzen™ 9000 / 8000 / 7000 Series)
Power Phase	7+2+1 Smart Power Phase Design, 60A Per Phase
Memory Support	4x DIMM, Dual Channel DDR5, Max 256GB (4x 64GB), up to 7600+ MHz (OC)
PCI-E Expansion Slots	1x PCIe 4.0 x16, 1x PCIe 4.0 x4 (Open-ended design)
Storage Interfaces	1x PCIe 5.0 M.2 slot, 1x PCIe 4.0 M.2 slot, 4x SATA ports
Display Connectivity	1x HDMI, 1x DisplayPort
Wireless & Bluetooth	M.2 Wi-Fi 6 Module (802.11 a/b/g/n/ac/ax, 2.4 GHz / 5 GHz), Bluetooth 5.3
Wired Network	Realtek® RTL8125BG 2.5 Gigabit Ethernet
Audio	Realtek® ALC897 HD Audio, 5.1 Channel
Front USB Headers	1x USB 3.2 Gen1 (1x Type-C), 1x USB 3.2 Gen1 (2x Type-A), 2x USB 2.0 (4x Type-A)
Rear I/O Ports	1x HDMI, 1x DisplayPort, 6x USB 2.0, 2x USB 3.2 Gen1 Type-A, 1x RJ45 LAN, 2x Wi-Fi Antenna Connectors, 3x Audio Jacks
Cooling & Lighting Headers	5x Fan Headers, 3x 5V ARGB Headers (TriXX-M & Windows 11 Dynamic Lighting support)
Debug LED	DRAM (Yellow), CPU (Red), GPU (White), Boot (Green)
Form Factor / Dimensions	Micro-ATX, 244 x 244 mm
