Thermalright

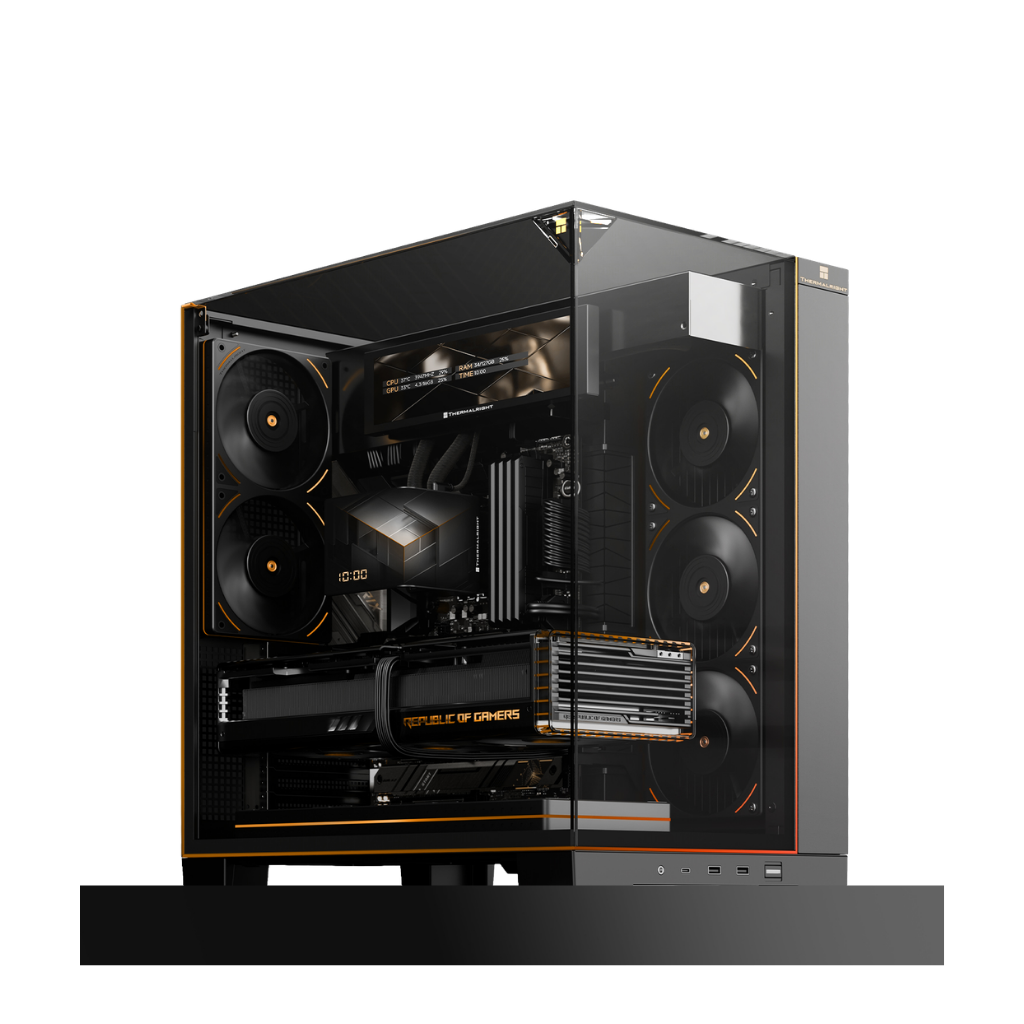

Thermalright A70 Vision UB (Black)

BND 220.00

Sold out

Out of stock

Estimated delivery: Aug 26 - Aug 30

Product Information

• Integrated 9.16-Inch Display: Custom-display hardware stats or visuals on a high-resolution 1920x480 screen via a simple 9-pin USB 2.0 connection.

• Pre-Installed Single-Frame Fans: Streamline cable management and airflow with integrated TL-UB36R and TL-UB24 unified ARGB fan assemblies.

• Back-Connected Motherboard Support: Ensure a clean, wire-free chamber build with full compatibility for ASUS and MSI hidden-connector ATX motherboards.

• Extensive Component Clearance: House high-performance hardware effortlessly with space for up to 420 mm GPUs, 168.4 mm CPU coolers, and 200 mm ATX power supplies.

• Dual 360 mm Radiator Support: Maximize thermal performance with dual radiator mounting options along the side and bottom channels.

• Modern Front I/O Connectivity: Access high-speed peripheral connections easily with dedicated USB Type-C and dual USB Type-A ports.

Product Summary

The Thermalright A70 Vision UB dual-chamber chassis combines showcase aesthetics with extreme cooling performance. Featuring an integrated 9.16-inch high-resolution display, support for back-connected motherboards, and pre-installed TL-UB series unified ARGB fans, this ATX enclosure provides an ultra-clean build environment for high-end components.

View details

Product Specifications

Warranty Information

Reviews

Category	Specification
Model	Thermalright A70 Vision UB
Dimensions (L x W x H)	450.8 x 289.5 x 477 mm
Net Weight	11.44 kg
Materials	ABS, SPCC, Tempered Glass
Motherboard Support	ATX / Micro-ATX / Mini-ITX (Back-Connected MB Supported)
Front I/O Ports	1x Power Button, 1x Headset Audio Jack, 2x USB Type-A, 1x USB Type-C
Drive Bays	1x 3.5" Drive Bay, 2x 2.5" Drive Bays
Expansion Slots	7 PCIe Slots
Included Case Fans	TL-UB36R (Reverse) + TL-UB24 Single-Frame Fan Array
Fan Support	Bottom: 3x 120 mm Side: 3x 120 mm Rear: 2x 120 mm
Radiator Support	Bottom: 120 / 240 / 360 mm Side: 120 / 240 / 360 mm
CPU Cooler Height Clearance	Up to 168.4 mm
GPU Length Clearance	Up to 420 mm
PSU Length Clearance	Up to 200 mm (ATX)
RGB Lighting Support	3-pin / 5V Addressable-RGB (ARGB)
Display Screen Size	9.16-Inch
Display Resolution	1920 x 480
Display Interface Connector	9-pin USB 2.0
Fan Model (TL-UB36R Specs)	Speed: 2150 RPM ±10%
Fan Model (TL-UB24 Specs)	Speed: 2150 RPM ±10%
Fan Bearing Type	S-FDB V2 Bearing
Fan Connector Interface	4-Pin PWM / 3-Pin 5V ARGB

Product Warranty: 3 Months (Case Fans)

Warranty covers defects or dead-on-arrival items with original receipt and packaging. It excludes damage from misuse, power issues, unauthorized repairs, and software/data.
To claim, contact us within the warranty period with all accessories and packaging. Warranty is non-transferable and for the original buyer only.
For questions, contact us or check our warranty information.
