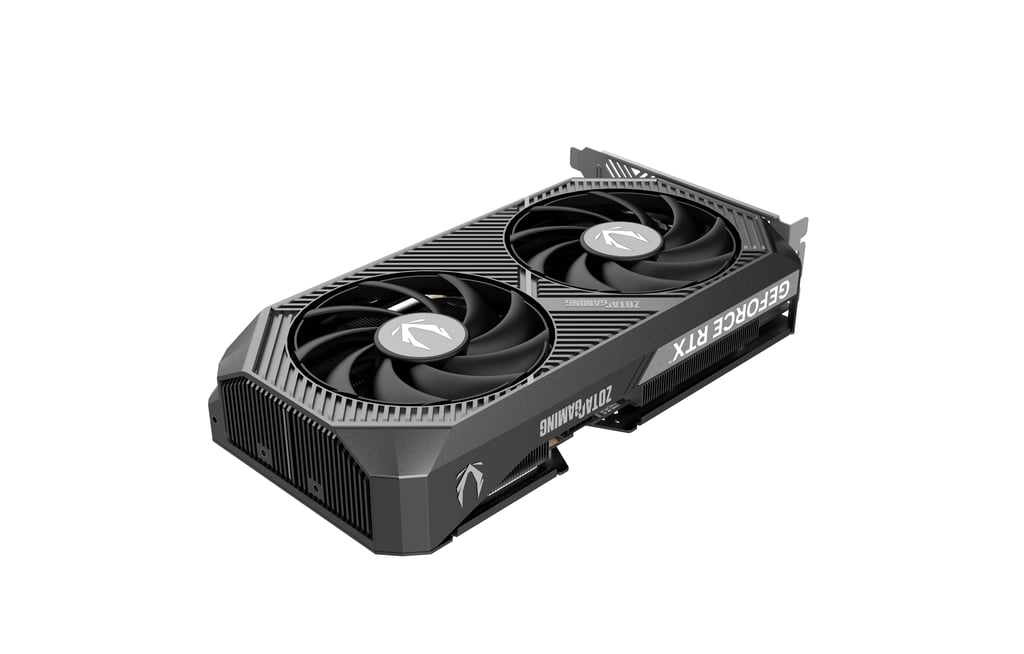

Zotac RTX 5060Ti Twin Edge OC 8GB
- NVIDIA GeForce RTX 5060 Ti GPU with 4608 CUDA cores delivers high-performance 1080p and 1440p gaming
- 8GB GDDR7 memory (128-bit, 28 Gbps) for fast, future-ready graphics processing
- OC engine clock up to 2602 MHz for extra power and smooth frame rates
- Compact 2-slot dual-fan IceStorm 2.0 cooling for silent and efficient heat management
- Display outputs: 3 x DisplayPort 2.1b (up to 8K/165Hz or 4K/480Hz), 1 x HDMI 2.1b (up to 8K/60Hz HDR, VRR)
- Quad display capability, HDCP 2.3, DirectX 12 Ultimate, OpenGL 4.6
- Efficient 180W TDP, single 8-pin power input, recommended 600W PSU
- PCIe 5.0 x8 interface for next-gen connectivity and data speeds
- Perfect for gamers, creators, and compact PC builds demanding both speed and efficiency
Product Specifications
| GPU | NVIDIA GeForce RTX 5060 Ti |
| CUDA Cores | 4608 |
| Video Memory | 8GB GDDR7 |
| Memory Bus | 128-bit |
| Engine Clock | 2602 MHz |
| Memory Clock | 28 Gbps |
| PCI Express | PCI Express 5.0 x8 |
| Display Outputs | 3 x DisplayPort 2.1b (UHBR20, up to 4K 480Hz / 8K 165Hz) 1 x HDMI 2.1b (4K 120Hz HDR, 8K 60Hz HDR, VRR) |
| HDCP Support | 2.3 |
| Multi Display | Quad Display |
| Recommended PSU | 600W |
| Power Consumption | 180W |
| Power Input | 1 x 8-pin |
| DirectX Support | 12 Ultimate |
| OpenGL | 4.6 |
| Cooling Solution | IceStorm 2.0 Dual Fan |
| Slot Size | 2 |
| SLI Support | No |
| Operating System | Windows 11 / Windows 10 64-bit (v1809 November 2018 or later) |
| Card Dimensions | 220.5mm x 120.25mm x 41.6mm 8.7" x 4.7" x 1.6" |
| Accessories | User Manual |
